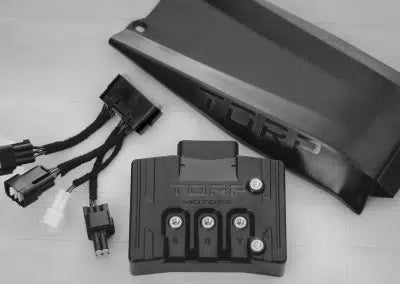

INCLUDED IN THE PACKAGE:

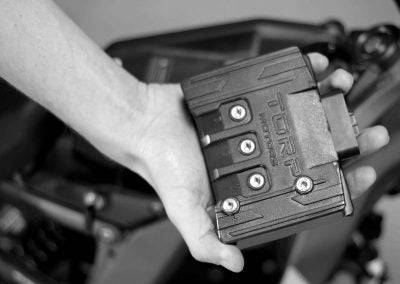

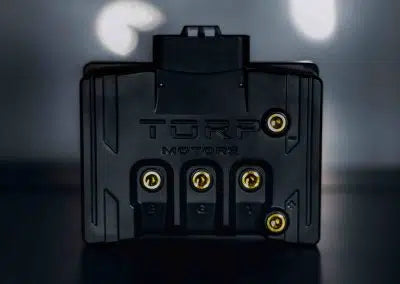

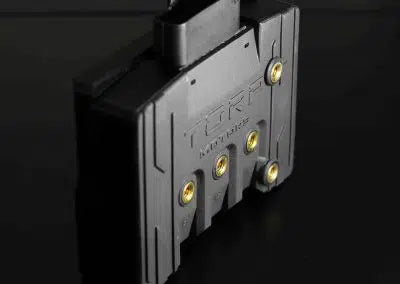

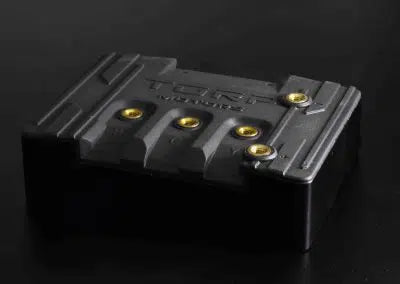

-1x TC500 Controller
-1x wire harness
-1x plastic shield
-screws and tools needed for installation
-4x stickers
-short instructions
SPECIFICATIONS:
-Field-oriented control (FOC)
-Supported batteries: up to 72V nominal 20S (84V fully charged)
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 350 A*
*In combination with the stock SurRon e-motor, the max power is 17 kW. In combination with the TM25 motor the max power is 23 kW.
-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: No additional steps required
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67
-Regular firmware updates
